Intel SC5300LX

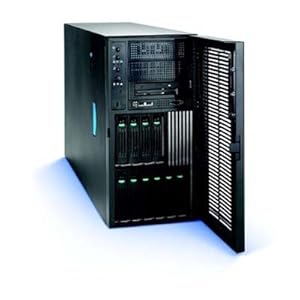

Intel SC5300LX

Code: SC5300LX

Price: $379.00

Shipping Weight: 34.00 pounds

Quantity in Basket: None

Intel SC5300LX SE7520AF2 6DRV-SCA IMM PRO ( SC5300AF2NA )

Product order codes

http://search.intel.com/default.aspx?method=text&c=en_US&q=SC5300LX

http://www.intel.com/support/motherboards/server/chassis/sc5300/sb/cs-012481.htm?wapkw=(SC5300LX)

The Intel® Server Chassis SC5300 comes in 3 SKUs, the base, the base redundant power & the LX versions. Below is a table which contains the product code, mm# and a short description of the SKU.

Product Code	MM#	Description
SC5300BASE	857678	Base chassis with 600 Watt PFC Fixed Power Supply, 2 chassis fans, supports 6 tool-free cabled drives, 1 power supply FAN.
SC5300BASENA	857702	Base chassis with 600 Watt PFC Fixed Power Supply, 2 chassis fans, supports 6 tool-free cabled drives, 1 power supply FAN, North American power cord.
SC5300BRP	862502	Base redundant power with 730 watt PFC redundant power supply unit, (2nd power supply is required for redundancy), 2 chassis fans, 1 power supply unit FAN per module, supports 6 tool-free cabled drives.
SC5300LX	857677	LX chassis with 730 watt PFC redundant power supply unit, (2nd power supply is required for redundancy), 4 hot-swap redundant chassis fans, 1 power supply unit FAN per module, supports 6 tool-free cabled drives.
SC5300LXNA	857703	LX chassis with 730 watt PFC redundant power supply unit, (2nd power supply is required for redundancy), 4 hot-swap redundant chassis fans, 1 power supply unit FAN per module, supports 6 tool-free cabled drives, North American power cord..
